G80 Hiding door hinge

Features

For wooden doors

For flush doors

Concealed installation

Adjutable after installed

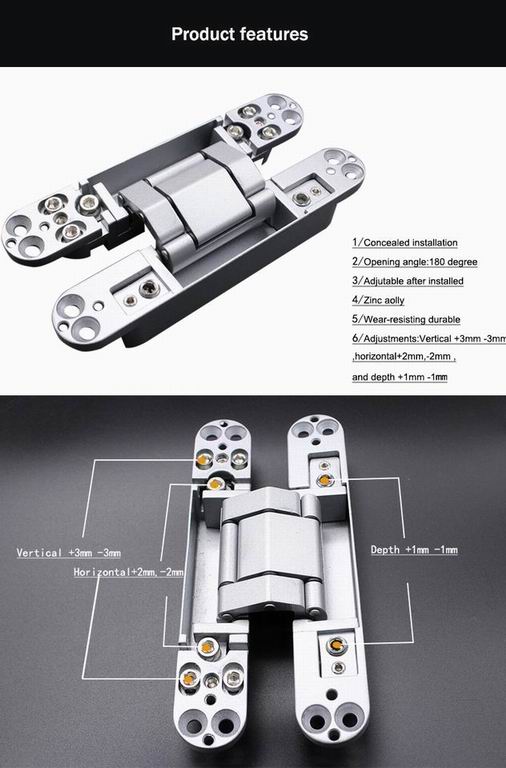

Adjustments:

Vertical +3mm -3mm ,horizontal+2mm,-2mm ,and depth +1mm -1mm

Technical data:

Max.door weight with 2hinges   40kg

Min.door thickness            35mm

Max.door width               850mm

Slim design for thin door        21mm

Materials:  Zinc Alloy,Alum

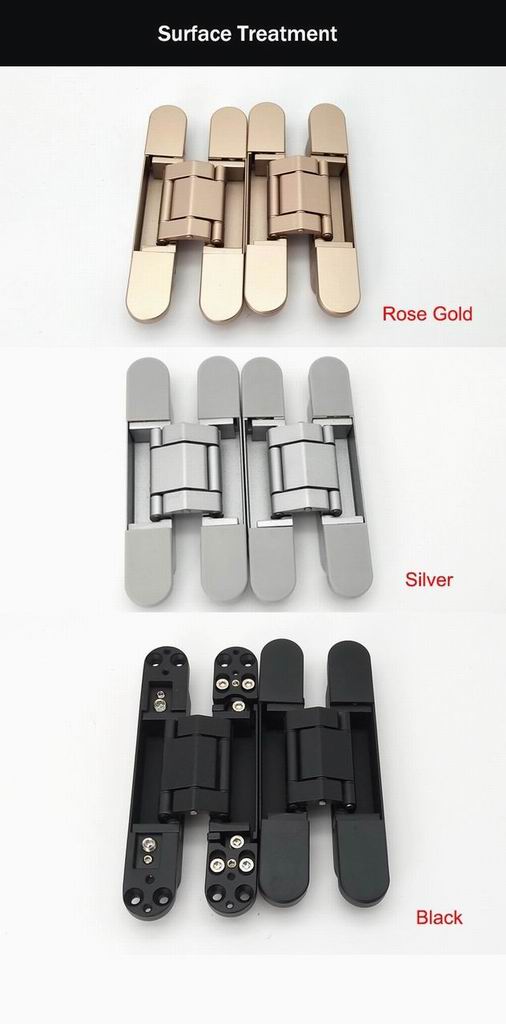

Finishes :Chrome ,Nickle ,Brass and Painting

Installation : wood tapping screws, Iron screws(optional)

Note

Finger protection due to small gap between door and frame

Application

Completely concealed for flush door with wood steel or aluminum frame
